Genesis

Genesis — Advanced Driver Cooling System

Genesis is a next-generation, liquid-based driver cooling system engineered for professional motorsport environments where sustained heat, endurance, and reliability matter most. Delivering 525W of consistent thermal transfer, Genesis regulates core body temperature, improves focus, and minimizes heat-induced fatigue during long stints and extreme conditions.

At the heart of the system is a high-efficiency micro brushless compressor and a 24V internal pump that circulates chilled coolant through a sealed 10.8 oz reservoir and directly into the driver’s cooling apparel. With a 20 L/min flow rate, Genesis maintains stable, continuous cooling even under extreme thermal load.

Genesis features a built-in plenum with 3-inch or 4-inch configurations and includes a matching Rev3 or Rev4 blower based on the selected size. This integrated airflow design allows for optimized duct routing and maximum cooling efficiency in high-heat race environments.

Housed in a carbon fiber body with a carbon fiber baseplate, Genesis delivers exceptional strength, thermal stability, and weight reduction in a compact footprint. A cockpit-mounted multifunction color remote provides real-time control of temperature, fan modes, and system diagnostics, giving the driver full command of cooling performance on track.

Key Features

• 525W liquid-based cooling power

• Operating range: 32°F–141°F

• Self-priming coolant system

• Built-in circulating bypass for shirt-disconnect operation

• High-efficiency micro brushless compressor

• 24V internal pump with 20 L/min flow rate

• Built-in plenum with 3-inch or 4-inch configurations

• Includes matching Rev3 or Rev4 blower

• Carbon fiber housing and baseplate

• Cockpit-mounted multifunction color remote included

Built for Extreme Heat and Endurance Racing

Genesis is purpose-built for endurance racing, off-road competition, and professional race programs operating in sustained high-temperature environments. Its fully integrated liquid cooling architecture, optimized airflow management, and carbon fiber construction deliver unmatched thermal consistency, rapid heat extraction, and long-term durability.

With its compact packaging, advanced control interface, and race-proven power output, Genesis represents the highest level of driver cooling performance in the Chillout lineup.

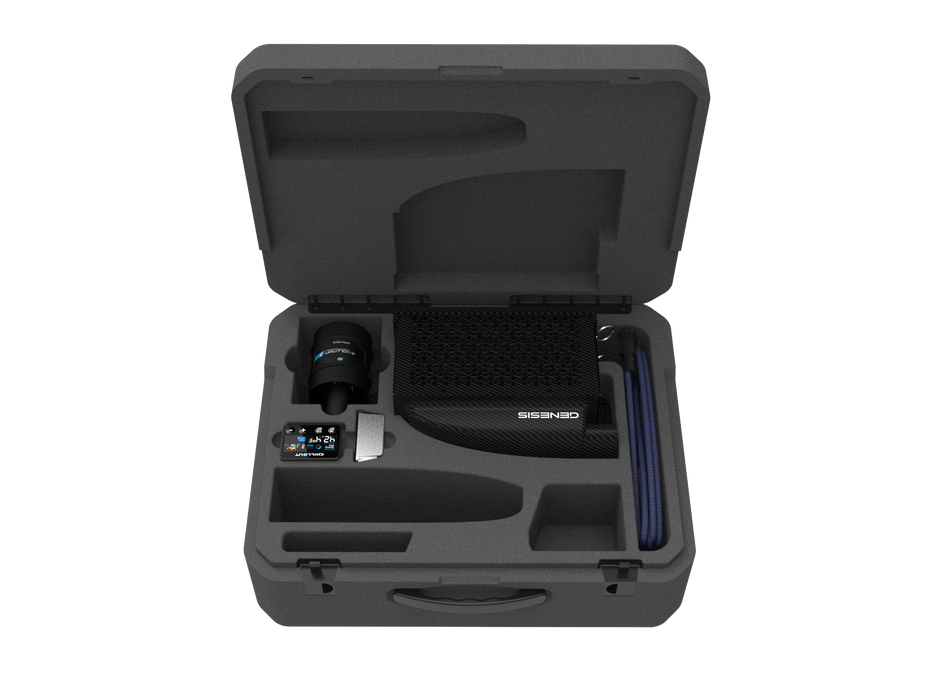

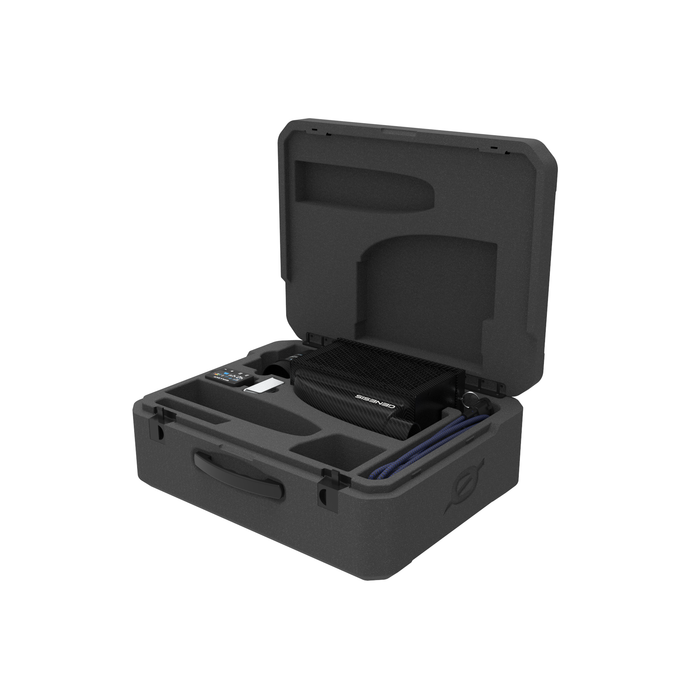

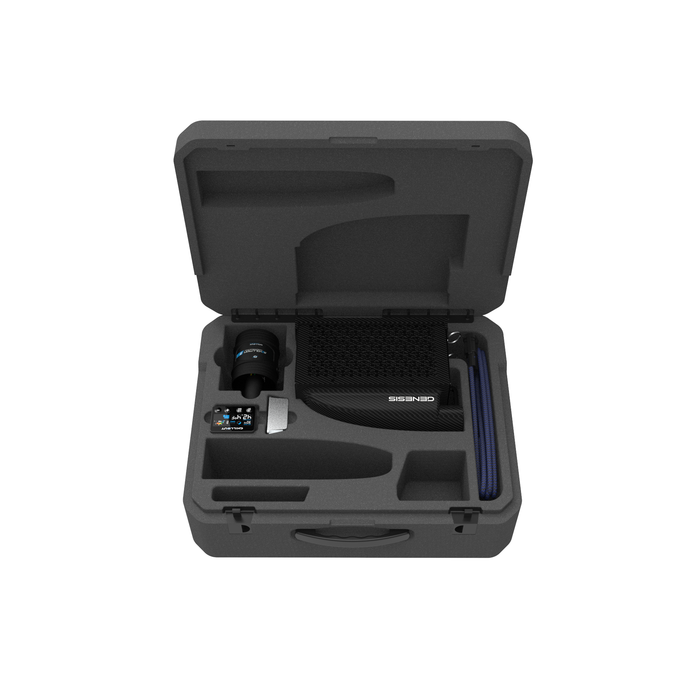

What’s Included

• Genesis Cooling System

• Carbon fiber mounting plate

• Rev3 or Rev4 blower matched to selected plenum size

• Multifunction color wired remote

• Power inverter

• 8-AWG wiring harness

• Mounting feet and locking pins

Specifications

Product Weight:
7.4 lbs / 3.36 kg

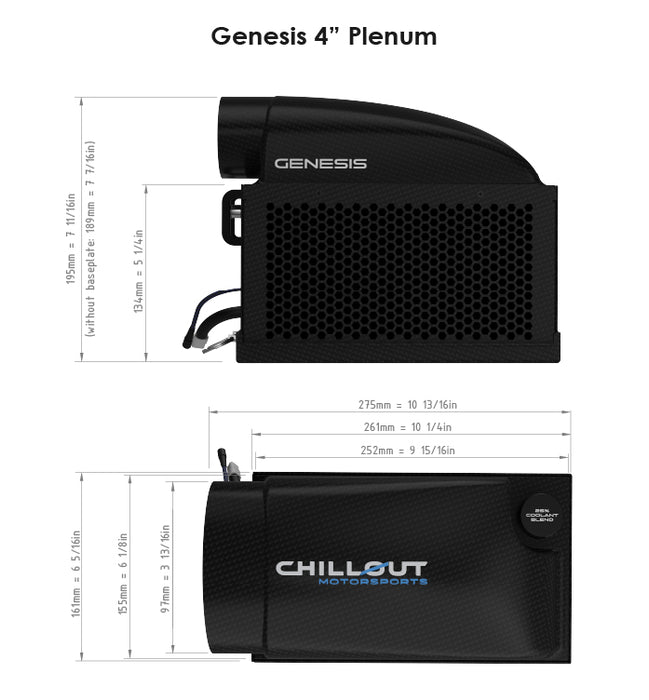

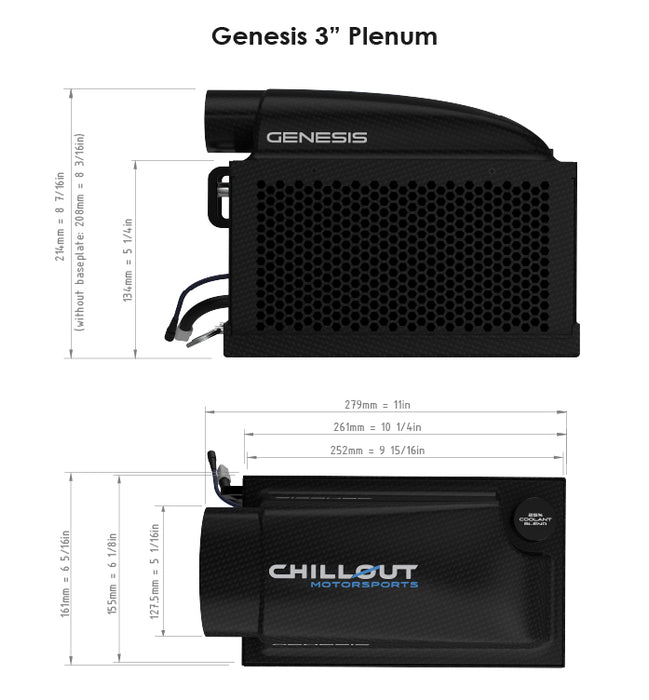

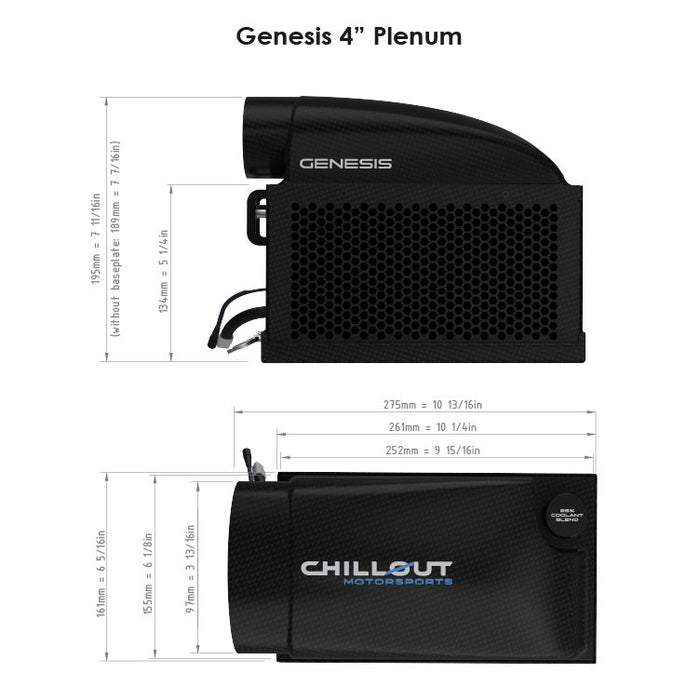

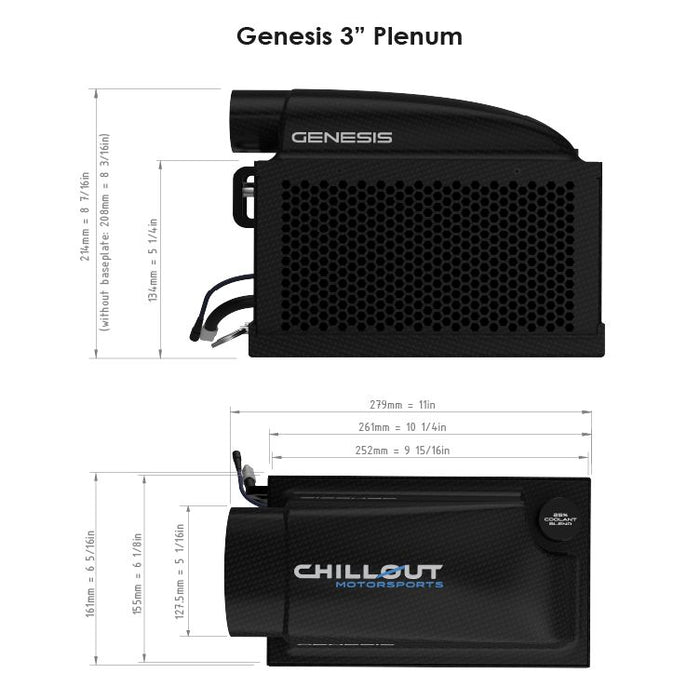

Product Dimensions:
9.9" × 6.1" × 8.4"
25.3 cm × 15.6 cm × 21.4 cm
